SMD910 series non-contact ID card reader specific module

Name: SMD910 series noncontact ID card reader specific module
Brand: SeabreezeRFID
Price: 1 USD

Place of Origin : China Mainland

Brand Name : SeabreezeRFID

Certification : RoHS

Model Number : SMD910

Add time : 2014-01-17 10:35:23

MOQ : 1 piece

Packaging Details : 1piece/carton

Delivery Time : In stock

Payment Terms : L/C, T/T, Western Union, PayPal

Supply Ability : 2000pcs/month or Specify the number

Contact Now

SMD910 series non-contact ID card reader specific module

MD910 series non-contact ID reader module is our company a simple and practical identification number read reader module.Advanced RF receiver circuit and embedded microcontroller design, combined with efficient decoding algorithms, complete data for EM4100 compatible ID card to receive.Has received high sensitivity, small work current, stability higher characteristic, suitable for access control, attendance, charges,anti-theft, patrolling, etc all kinds of rfid applications. Because of simple and convenient, also can use own DIY ID card or tag tests.

Characteristics

An external antenna, the work frequency is low frequency 125 KHz

Fully support uem4100 compatible format ID card (64 bits, Manchester code)

The effective distance of 10 cm or more

Data reception time is less than 100 ms

Single+5V power supply, DC power supply working current is less than 70ma

Wiegand 26 bits/ABA standard format data output

Technical parameters

Frequency: 125KHz

Baud rate: 9600(TTL level RS232 interface)

Interface: Weigang26/TTL Electricity Level RS232 format

Power supply: DC 5V(±5%)

Current: < 50ma

Working distance: > 50mm (varies according to different RFID card)

Extended I/O interface: N/A

Indication light: N/A

Working temperature: -10℃-+70℃ (+14℉-+158℉)

Storage temperature: -20℃-+80℃ (-4℉-+176℉)

Size: 38.5×19×9mm

Buy cheap SMD910 series non-contact ID card reader specific module product

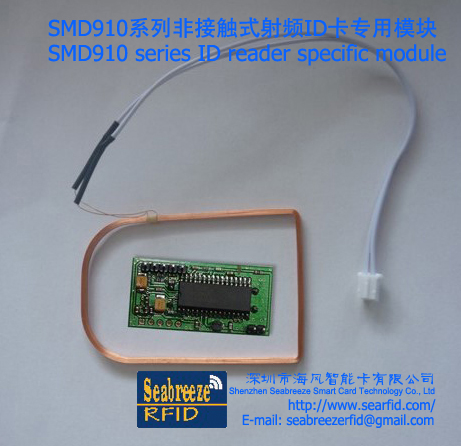

SMD910 series non-contact ID card reader specific module Images
